Arum milling machine lineup

machine table.png

ARUM
5X-200



Disc

For milling centre

Bar

Metal

Bridge

Pre-milled blank

5 Axis




5 - AXIS
Simultaneous milling


±5 µm
Repeatability value


5unit
Abutment fixture

Mill Any Type of
Materials


ARUM
4X-100



Zirconia

4 Axis

Custom Abutment

For milling centre

Pre-milled blank

Fast




10 - units
Abutment fixture


15 mins
milling per pre-milled blank


± 5 µm
Repeatability value


4 - AXIS
Simultaneous milling


ARUM
5X-400



Soft Materials

For dental lab

Zirconia

5 Axis




5 - AXIS
Simultaneous milling


±5 µm
Repeatability value


5unit
Abutment fixture


2 pre-milled blank
Abutment fixture


ARUM
300-SERIES




Zirconia

Soft Materials



For dental lab

Compact



ARUM 5X-200




Number of Axis 5-Axis
Indications Inlay and Onlay, Crown, Coping, Crown Bridge, Coping Bridge, Dental Bar, Screw-Retained Bridge, Customized Abutment, Hybrid Abutment, Model, Splint
Processing Type Wet and Dry
Cuttable Materials Titanium Disk, Co-Cr Disk, Ni-Cr Disk, Pre-Milled Blank (Co-Cr, Titanium), Zirconia, Lithium Disilicate (E-max®, Etc), Nanocomposite (Vericom Mazic® duro, Lava Ultimate® Etc), PMMA, PEEK, Wax, Etc
Surrounding Equipment Water Tank (Wet Type) /Option - Air Compressor, Dust Collector (Dry Type)
Drive Mechanism Ball Screw
Way System Linear Guide
LED Work Light White, Blue
Way System Linear Guide
Machine Size 743×827×1782mm (29×32×70inch)
Machine Weight 405Kg (893Ib)
Travel X,Y,Z axis 743×827×1782mm (29×32×70inch)
A,B axis A : 360° / B : ±30°
Spindle Power DC 3.0kw
Spindle Speed 2,000 to 60,000 rpm
A.T.C Number of Tools 15
Input Power 1 AC 200-250V, 50/60Hz, 15A


ARUM 4X-100



Number of Axis 4-Axis
Indications Inlay and onlay, Crown, Coping, Crown Bridge, Coping Bridge, Customized Abutment
Processing Type Wet and Dry
Cuttable Materials Pre-Milled Blank (Co-Cr, Titanium), Zirconia, Lithium Disilicate (E-max®, Etc), Nanocomposite (Vericom Mazic® duro, Lava Ultimate® Etc), PMMA, PEEK, Wax, Etc
Surrounding Equipment Water Tank (Wet Type) /Option - Air Compressor, Dust Collector (Dry Type)
Drive Mechanism Ball Screw
Way System Linear Guide
LED Work Light White
Way System Linear Guide
Machine Size 623×780×1735mm (24×30×68inch)
Machine Weight 300Kg (661Ib)
Travel X,Y,Z axis 250×116×110mm (10×5×4inch)
A,B axis B : 360°
Spindle Power AC 1.8kw
Spindle Speed 5,000 to 50,000 rpm
A.T.C Number of Tools 8
Input Power 1 AC 200-250V, 50/60Hz, 15A

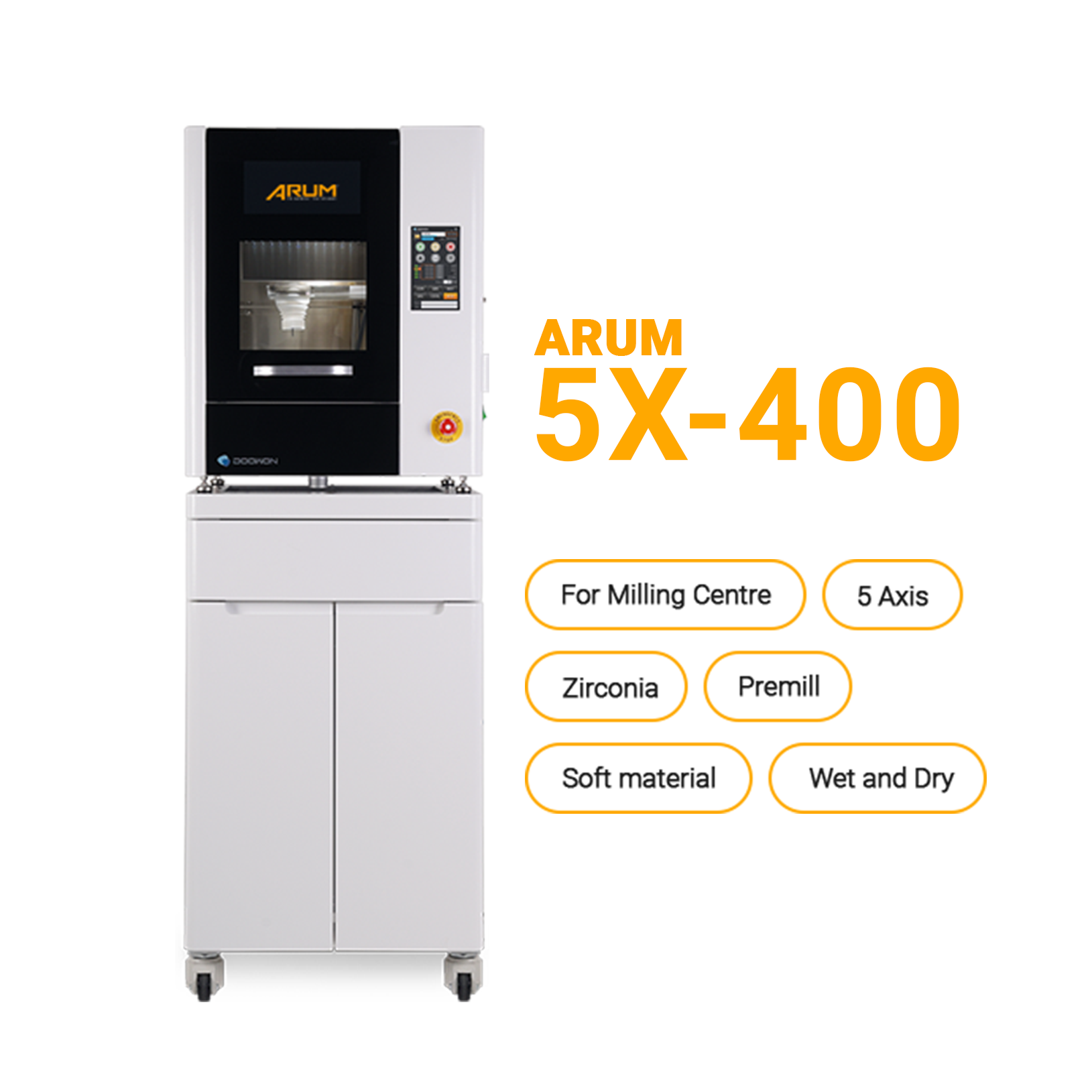

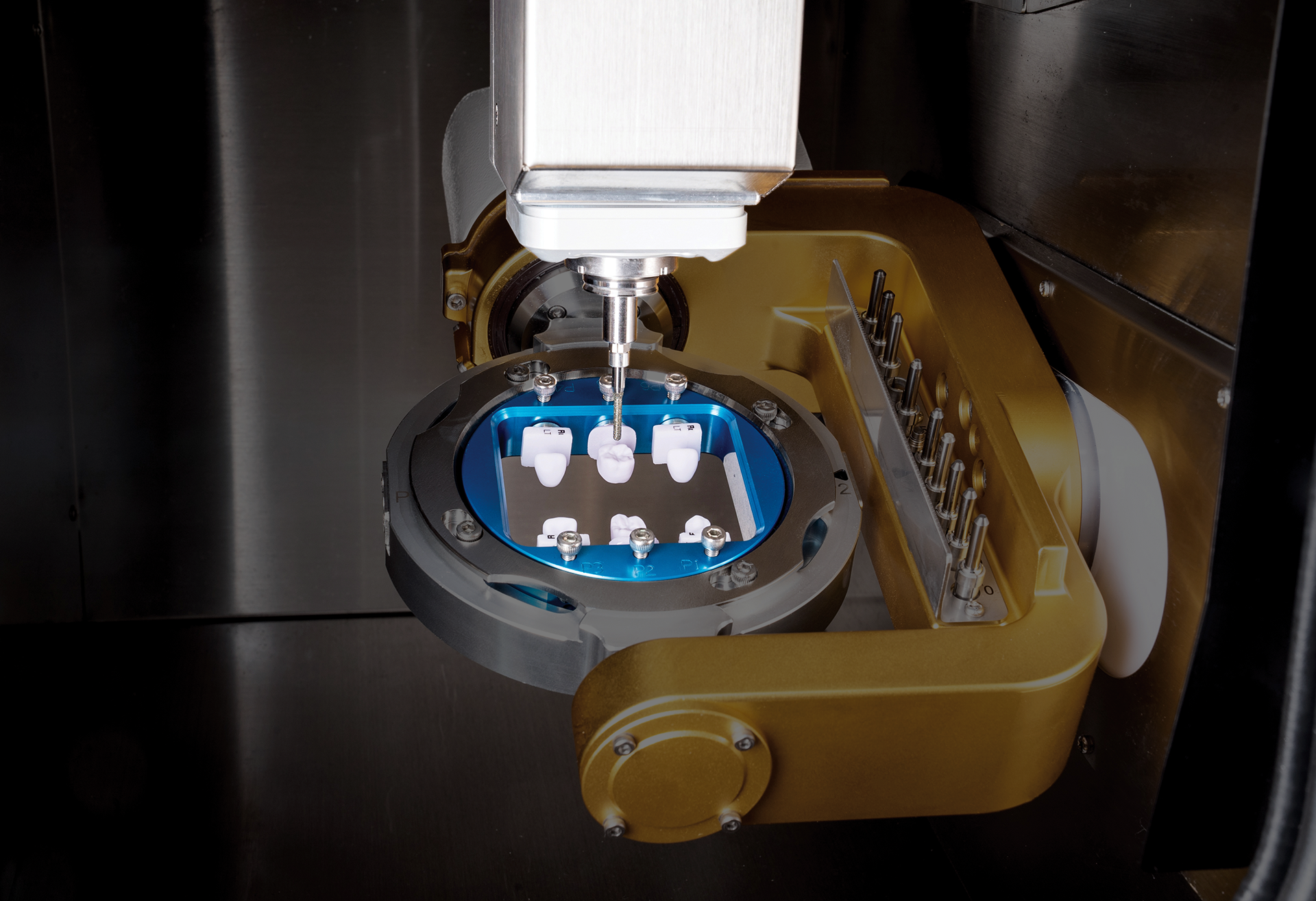

ARUM 5X-400


5x400 spec.png

Number of Axis 5-Axis
Indications Inlay and onlay, Crown, Coping, Crown Bridge, Coping Bridge, Customized Abutment
Processing Type Wet and Dry
Cuttable Materials Titanium Disk, Co-Cr Disk, Ni-Cr Disk, Pre-Milled Blank (Titanium), Zirconia, Lithium Disilicate (E-max®, Etc), Nanocomposite (Vericom Mazic® duro, Lava Ultimate® Etc), PMMA, PEEK, Wax, Etc
Surrounding Equipment Water Tank (Wet Type) /Option - Air Compressor, Dust Collector (Dry Type)
Drive Mechanism Ball Screw
Way System Linear Guide
LED Work Light White, Blue
Way System Linear Guide
Machine Size 743×827×1782mm (29×32×70inch)
Machine Weight 405Kg (893Ib)
Travel X,Y,Z axis 743×827×1782mm (29×32×70inch)
A,B axis A : 360° / B : ±30°
Spindle Power DC 3.0kw
Spindle Speed 2,000 to 60,000 rpm
A.T.C Number of Tools 15
Input Power 1 AC 200-250V, 50/60Hz, 15A


ARUM 5X-300/300D


5x300 spec.png
MODEL 5X-300 5X-300D
Number of Axis 5-Axis 5-Axis
Indications Inlay and Onlay, Crown, Coping, Crown Bridge, Coping Bridge, Dental Bar, Screw-Retained Bridge, Hybrid Abutment, Model, Splint Inlay and Onlay, Crown, Coping, Crown Bridge, Coping Bridge, Dental Bar, Screw-Retained Bridge, Hybrid Abutment, Model, Splint
Processing Type Wet and Dry Dry
Cuttable Materials Zirconia, Lithium Disilicate (E-max®, Etc), Nanocomposite (Vericom Mazic® duro, Lava Ultimate® Etc), PMMA, Wax, PEEK Zirconia, Nanocomposite (Vericom Mazic® duro, Lava Ultimate® Etc), PMMA, Wax, PEEK
Machine Size Machine 540 X 580 X 630mm (21 X 22 X 24 inch) 540 X 580 X 630mm (21 X 22 X 24 inch)
Table 540 X 580 X 950mm (21 X 22 X 37 inch) -
Machine Weight Machine 90kg (198lb) 90kg (198lb)
Table 65kg (143lb) -
Spindle Power AC 0.5kw AC 0.5kw
Spindle Speed 6,000~80,000 RPM 6,000~80,000 RPM
A.T.C Number of Tools 12ea 12ea
Rotation Angle A axis : ±30° / B axis : 360° A axis : ±30° / B axis : 360°


ARUM 4X-300/300D


MODEL 4X-300 4X-300D
Number of Axis 4-Axis 4-Axis
Indications Inlay and Onlay, Crown, Coping, Crown Bridge, Coping Bridge,Hybrid Abutment Inlay and Onlay, Crown, Coping, Crown Bridge, Coping Bridge,Hybrid Abutment
Processing Type Wet and Dry Dry
Cuttable Materials Zirconia, Lithium Disilicate (E-max®, Etc), Nanocomposite (Vericom Mazic® duro, Lava Ultimate® Etc), PMMA, Wax, PEEK Zirconia, Nanocomposite (Vericom Mazic® duro, Lava Ultimate® Etc), PMMA, Wax, PEEK
Machine Size Machine 540 X 580 X 630mm (21 X 22 X 24 inch) 540 X 580 X 630mm (21 X 22 X 24 inch)
Table 540 X 580 X 950mm (21 X 22 X 37 inch) -
Machine Weight Machine 90kg (198lb) 90kg (198lb)
Table 65kg (143lb) -
Spindle Power AC 0.5kw AC 0.5kw
Spindle Speed 6,000~80,000 RPM 6,000~80,000 RPM
A.T.C Number of Tools 12ea 12ea
Rotation Angle A axis : 360° A axis : 360°
