The World Best 3D Printing Total Solution Provider


printer img.png

ARUM 50 - 3D PRINTER | ARUM Q50 - UV CURING OVEN




User friendly printing solution

  • Remote upgrade and technical support available

  • Low maintenance cost due to convenient replacement of Vat film

  • 7-inch wide touch screen LCD and user friendly UI allow easy operation



Wide range printing functions

  • Offers various resin options by changing user-selected parameter

  • Powerful slicing software for dental 3D printing



Excellent printing performance

Great precision resulting from collaboration with global dental specialists

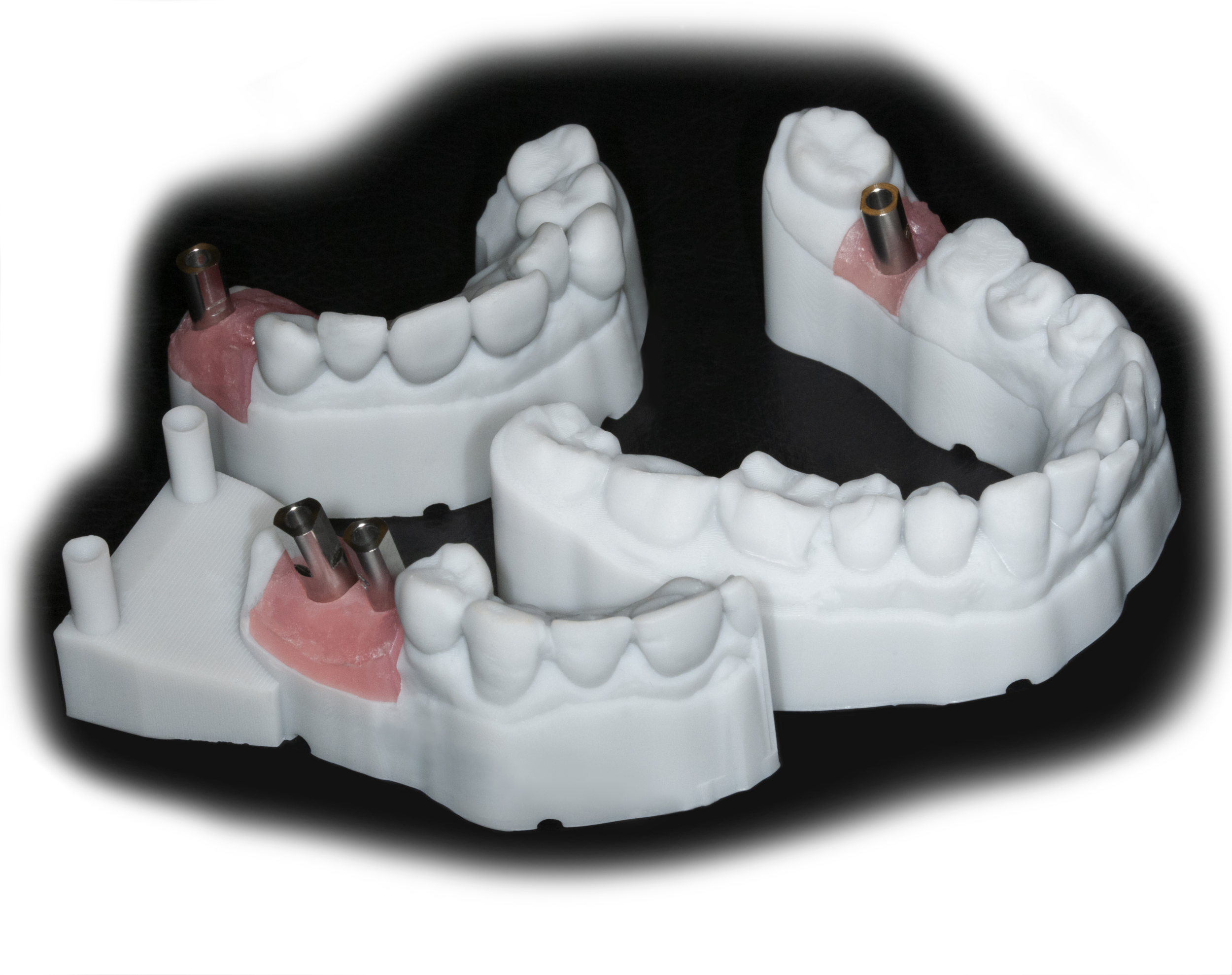

3d print model.png


ARUM 50 - 3D printer
Specification

Build Volume 124.8(L)×70.2(W)×100(H)mm
Resolution 65㎛
Light Source DLP (385㎚ Industrial UV LED)
Printing Speed Typ. 20 to 30 mm/hour (depend on the resin type)
Slicing Program Magics Print DLP for Arum 3D Printer
Operation Mini Computer with 7” Touch LCD
Dimensions φ344(D)×755(H)mm (cylindrical type)
Weights 30kg
Input Power AC 100 to 240V(Selectable) 3A, 50/60Hz

ARUM Q50 - UV curing oven
Specification

Light Source UV LED
Input Voltage 100-240V
Frequency 50/60Hz
Power consumption 75W
LED Min Radiant Flux 1100mW
LED Max Radiant Flux 1300mW
LED Operation Temp -10 to 85°C
Sterilization UV Lamp 5W(254nm)
Curing Chamber Ø120, 95mm(H)
Outer Dimension Ø248, 385mm(H)
Weight 7kg

MORE POWERFUL
THAN EVER


3d scanner.png

ARUM HD | ARUM UHD - 3D SCANNER



STABLE SCAN STAGE

We developed a completely unique system as compared to other conventional system. Conventional scanners need to mount models with fixture or clays, and they are not only tedious and messy but also time consuming.

Stable Scan Stage (SSS) method with moving camera technology allows you scan without any fixture or adhesive.

ARUM 3D Scanner’s patented SSS Method with moving camera technology enables camera and light module to rotate around the center of scanning stage and keeps your models stable during the scanning process.


BIG TIME SAVER

SPEED
Not only will you benefit from a quick scanning process, but you will also save your working time by using no fixtures. With a combination of 2.0MP cameras(HD) /5.0MP cameras(UHD) and USB 3.0, ARUM 3D scanner can now offer a high quality data with speed.



27 "
SINGLE DIE

50 "
FULL MODEL

47 "
7 DIES


all in one img.png


ALL-IN-ONE
The conventional process normally takes four or five steps including the bite(occlustion) scan as shown above. This repetitive mounting and scanning process can be burdensome and time-consuming. All-in-one scanning enables you to complete a single or 3-unit bridge case in two simple steps(including the bite scan) It will save almost 50% of the work time.




ALL-IN-ONE SCAN

50% FASTER

all-in-one scan steps.png

all-in-one scan.png

Multi-die Scanning



Your work efficiency is increased when Multi-die plate is used to scan complex models with many dies. Highly productive and accurate data can be obtained with effortless scan spraying.


Multi-die Scanning.png

HIGH QUALITY MOLYBDENUM DISILICIDE HEATING ELEMENTS SPEED


20

Single Crowns


sintering furnace.png

ARUM HT-S SPEED - Sintering Furnace


Power max. 2000 W
Voltage range / frequency 220-240 V / 50-60 Hz
Weight 58 kg
Max. temperature 1650°C
Temperature accuracy 1500 °C +/- 3 °C
Heating elements MoSi2
Number of heating elements 4
Heating-chamber height 42mm
Max. heating-chamber capacity 100/30 mm

HT-S SPEED_Detail1.jpg




furnace table.png
